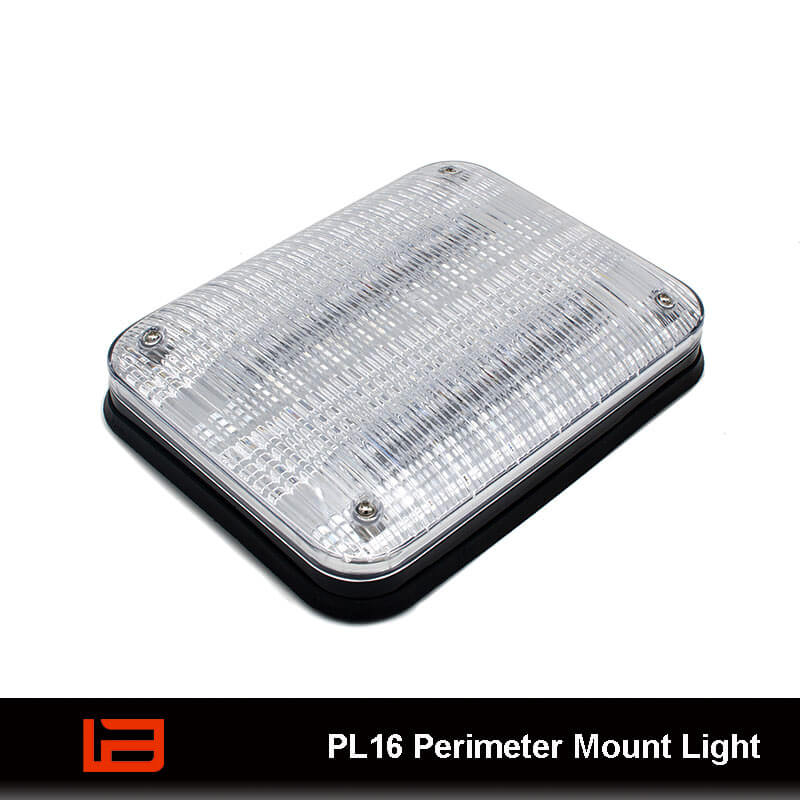

PL16 Perimeter Mount Lights

PL16 Perimeter Mount Lights

The PL16 LED perimeter Mount comes equipped with 16pcs 3-watt LEDs with a low profile application perfect for fire/ambulance vehicle lighting.

  • LED Power: 16PCS 3W
  • Lens: /
  • LED Lifespan: 100000H
  • Flash Pattern: 18
  • Input Voltage: DC12-24V
  • Max Power: 48W
  • Average Current Draw: /
  • Colour Available: LED:single or split color Lens:Amber/Red/Blue/Clear lens available
  • Ambient Temperature: /
  • Waterproof: IP67
  • Product Dimension: 242mm L x 184mm W x 50mm H
  • Mounting: Surface mount
  • Certifications: /
  • Wire: 4 core (Red wire: positive;Black wire: negative; Yellow wire: sync; white wire: flash pattern)
  • Cable Length: 20cm
  • Material: Aluminum alloy base,UV-resistant PC lens
  • Net Weight: 1000g
Request A Quote

Features:

LED technology provides better lighting with far less amperage than halogen

Voltage 12-24 VDC

16 High power 3-watt LEDs

Provides 180°light spread

Available with up to 18 flash patterns

Single Colors or Split Color available

Amber, Red, Blue or Clear Lenses are available

Easy to Install or Retrofit

Covered with rubber protector

Weather and vibration resistant

Synchronization between Multiple modules



Warranty:

5 Year Warranty on All Emergency Vehicle Lighting Products



Included in Box:

PL16 Perimeter light

Screw

Owner's Manual



Dimensions:

242mm L x 184mm W x 50mm H



Interchangeable/Compatible with:

All automobiles and devices are equipped with a 12 or 24 Volt DC power source.
