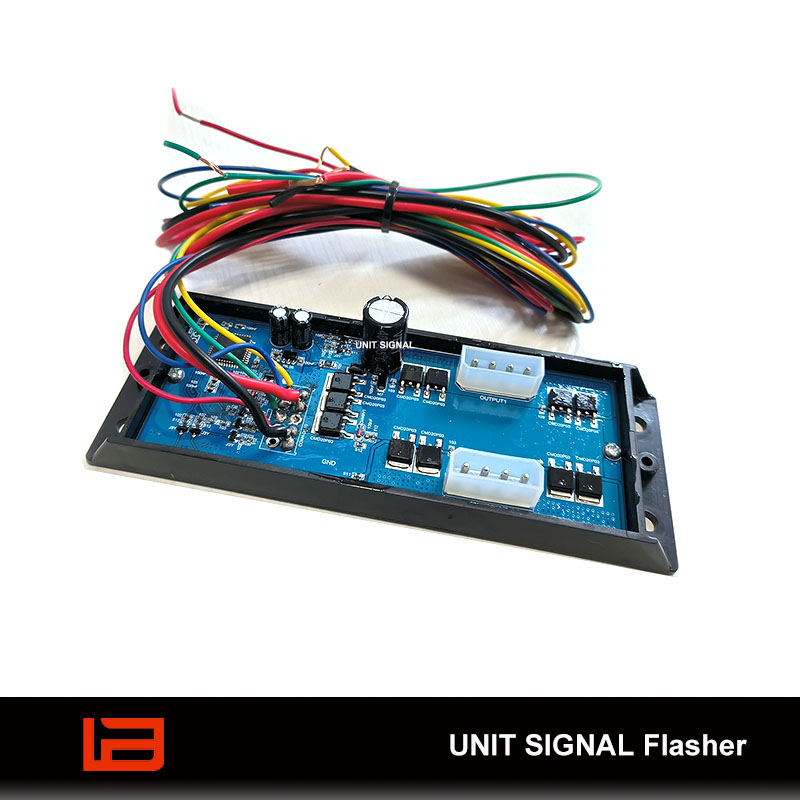

The Unit Signal Flasher is an LED flasher that offers 25 flash patterns. It is the most versatile of all the LED and light flashers on the market. This LED flasher has two 8-amp outputs and it is universal to all the 12V lights.
The flasher is an important part of a vehicle’s electrical system. It can control such as the lightheads, hideaway light and light bars. Without it, these systems would not work smoothly.
This flasher has 5 wires. The red wire is for positive and the black wire is for negative. You can use the yellow wire to change flash patterns and the blue wire is for cruise mode. The last wire is white one. It can synchronize 4 lights to make them flash at the same time. That's all for the wiring diagram for this 12V flasher.
It is important to use the wiring diagram correctly, which ensures the system works properly and does not cause any damage. Double check is necessary.
