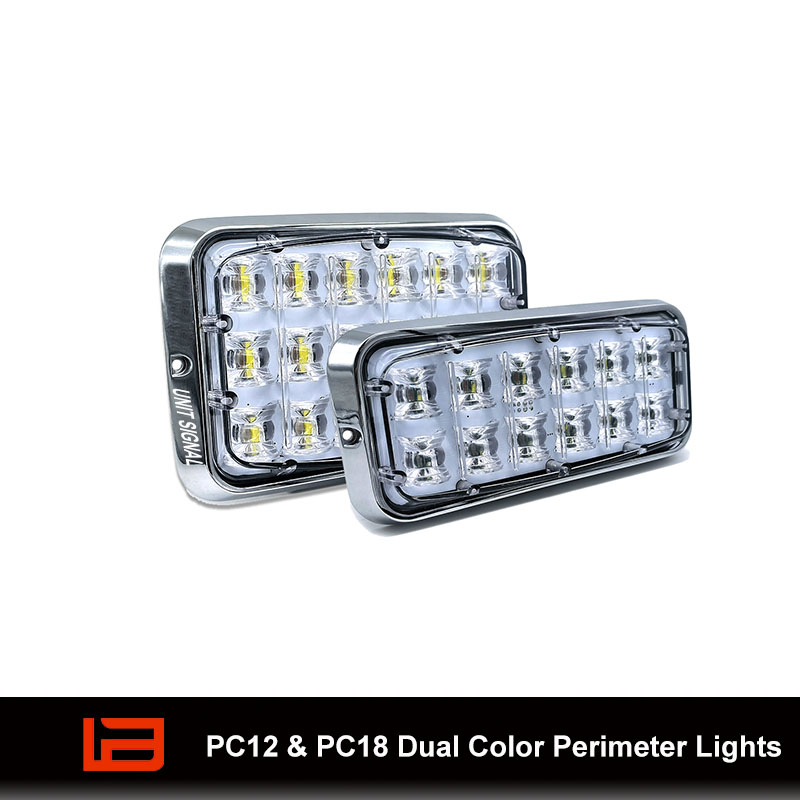

PC12 7x3, PC18 6x4 Dual Color Perimeter Lights
PC12 & PC18 dual color perimeter light is a great addition for any ambulance, fire truck, or surface mount application. 5W LEDs, Chrome bezel.
- LED Power: 5W LEDs
- Lens: Fresnel lens
- LED Lifespan: 100000H
- Flash Pattern: 37
- Input Voltage: DC12-24V
- Max Power: 60W/90W
- Average Current Draw: /
- Colour Available: LED: single or dual color; Lens: Amber/Red/Blue/Clear lens available
- Ambient Temperature: /
- Waterproof: IP67
- Product Dimension: PC12: 20.3 x 9.5 x 2.5cm; PC18: 17.9 x 12 x 2.5cm
- Mounting: Surface mount
- Certifications: Pending
- Wire: 8 core
- Cable Length: 20cm
- Material: Aluminum alloy base,UV-resistant PC lens with chrome bezel
- Net Weight: PC12: 410g; PC18: 600g
Features:
7x3 and 6x4 perimeter lights
Single or Dual colors available
Brake, tail, turn, dim function available
Voltage 12-24 VDC
12/24, 18/36 High-power 5-watt LEDs
Provides 180°light spread
Available with up to 37 flash patterns
Amber, Red, Blue, or Clear Lenses are available
Easy to Install or Retrofit
Weather and vibration-resistant
Covered with rubber protector
Synchronization and alternating between Multiple modules
Includes chrome bezel
Warranty:
5 Year Warranty on All Emergency Vehicle Lighting Products
Included in Box:
PC12 Perimeter light
PC18 Perimeter light
Screws
Owner's Manual
Dimensions:
PC12: 20.3 x 9.5 x 2.5cm
PC18: 17.9 x 12 x 2.5cm
Interchangeable/Compatible with:
All automobiles and devices are equipped with a 12 or 24-volt DC power source.
